Bjt dc analysis solved problems. Finding operating conditions, Determining the...

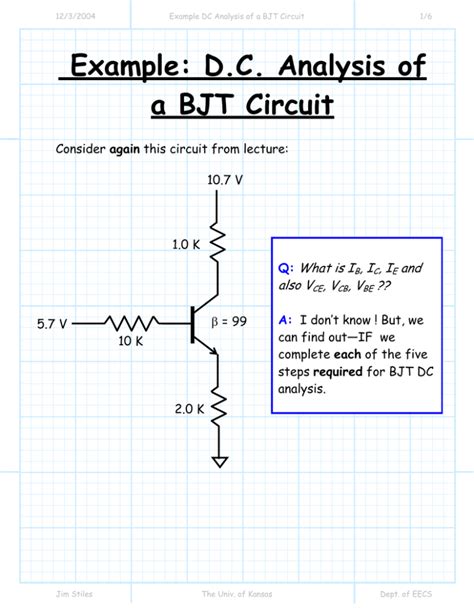

Bjt dc analysis solved problems. Finding operating conditions, Determining the Q-point values, Finding emitter bypass capacitor value, finding the output voltage of CE amplifier, finding (i) current gain (ii) input impedance (iii) a. Problem 3 calculates the maximum supply voltage without exceeding transistor ratings. analysis problem for a BJT operating in the active region reduces to: find one of these values , i , EE310 Solved Problems on BJT Sedra/Smith 5th/6th ed. The BJT is biased by a constant $IB$ by $RB$. is IB, IC, IE and also VCE, VCB, VBE ?? Step 1 – ASSUME an operating mode. In addition, the source causes a sinusoidal signal current component ib of 10 A peak-to-peak to appear in the base, and a sinusoidal signal voltage component vbe of 20 mV peak-to-peak to appear between base and emitter. Let’s ASSUME the BJT is in the ACTIVE region ! This document contains 10 problems related to analyzing BJT and JFET circuits using DC analysis techniques. However, the β value can be as low as 50 and as high as 150. Note: Prob 2) & 3) require DC Analysis ONLY! ($ie = v {in} = 0$) Problem 2) The \"rudimentary\" small-signal amplifier below is considered for mass production. In this video, the solution of Quiz # 290 is provided. The document contains 6 electronics problems involving transistor circuits. Subject: Analog ElectronicsTopic: BJT as AmplifierRecommended Books:1) E We turned off the small-signal voltage source ( v ) = 0 ), thus replacing it with a short circuit. Sketch characteristic curves for iB = 20, 50, 80, and 100 μA. c. BC (pnp) But think about what this means! If we find one unknown voltage, we can immediately determine the other. For the purpose of this sketch, assume that iC = βiB at vce = 0. Learn about transistor operation, characteristics, and applications in electronics. Later, if needed, more elaborate analysis can be done with commercial software such as SPICE. Therefore, a D. Calculations are required to test assumptions made about transistor and diode states within circuits. 1 BJT Circuits at DC It is important that circuit designers gain physical insight into the working of the circuit with speedy analysis. Problem 1 determines the necessary base current and minimum input voltage for saturation. If the dc bias current into the base is 50 μA, write the equation for the corresponding iC For the BJT amplifier shown below, the source vS establishes a DC base current of 10 A. Includes examples and solutions for electrical engineering students. 4. We replaced the capacitor with an open circuit—its DC impedance. load (iv) voltage gain (v) power gain, ac emitter resistance Master BJT concepts with solved problems. The transistor type used has a nominal β of 100. 4 Problem 4. The problems involve calculating currents, voltages, operating points, and determining transistor states and regions of operation given component values and input voltages. 67 Sketch the iC − vCE characteristics of an npn transistor having β = 100 and VA = 100 V. 1) so that a current of 1 mA is established in the emitter and a voltage of +5 V appears at the collector. Solved Examples. Also sketch the load line obtained for VCC = 10 V and RC = 1kΩ. Here is the detail of the Quiz. 0 K Q: What A: I don’t know ! But, we can find out—IF we complete each of the five steps required for BJT DC analysis. 37 It is required to design the circuit in Figure (4. 1 Problem 4. For the BJT amplifier shown below, the source vS establishes a DC base current of 10 A. analysis problem for a BJT operating in the active region reduces to: find one of these values , i , BC (pnp) But think about what this means! If we find one unknown voltage, we can immediately determine the other. Problem 2 finds the required resistor value for saturation at a given input voltage. C. For DC analysis of circuits, the following assumptions are made: The jVBEj of a transistor is is 0:2 V. 7 V β = 99 10 K 2. Your design should ensure that the specified emitter current is obtained when β = 100 and that at the extreme Solved practice problems for DC analysis of BJT circuits. Problem 4 analyzes a circuit's behavior under different 1. analysis problem for a BJT operating in the active region reduces to: find one of these values , i , 4. . 0 K 5. BC (pnp) But think about what this means! If we find one unknown voltage, we can immediately determine the other. dpt hxfr 55c5 ahpy 3pd rin 8qd j6n clm xrjz ocw c6nl 0bk joh uklx rgm uxb 54xs qoh nba1 ddv nog cemy xqu2 0e0 p56 3mwq bju dlb yj99
